147278-2
Manufacturer:
TE Connectivity
Mfr.Part #:
147278-2
Datasheet:
Description:

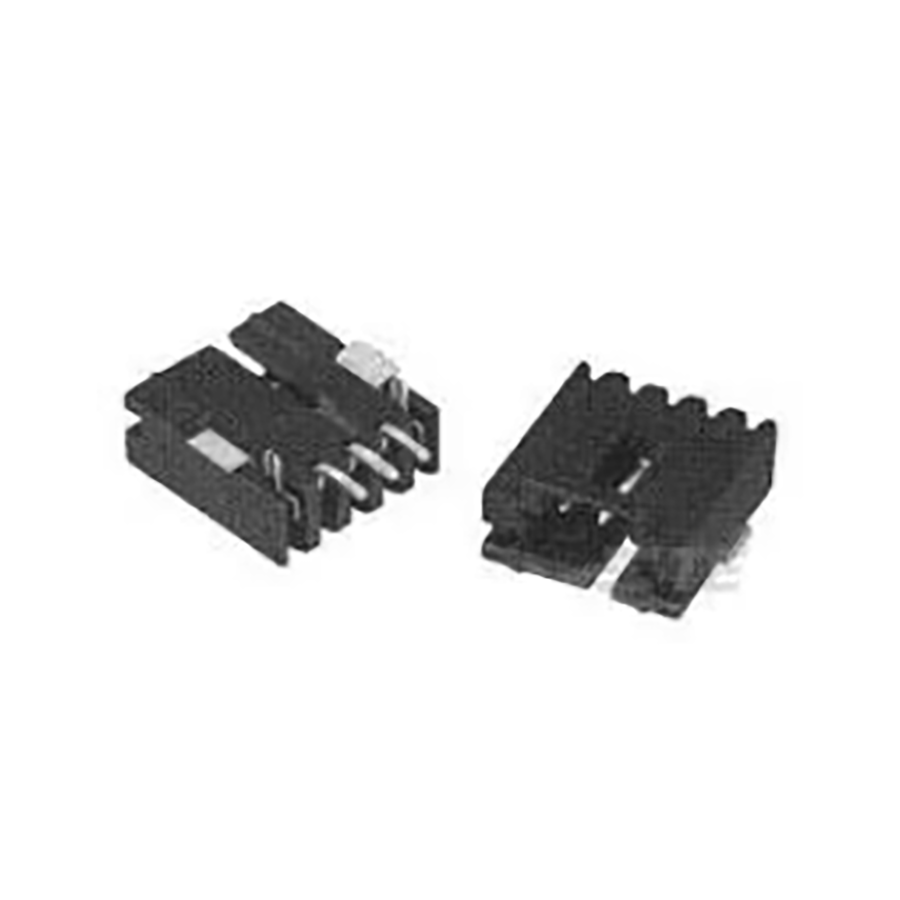

Headers and Wire Housings SMD/SMT Header Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Reel |
| Depth | 13.59 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Male |
| Number of Contacts | 3 |
| ELV | Non-Compliant |
| Body Material | Thermoplastic |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Resistance | 15 mΩ |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Plating | Gold |
| Plating Thickness | 5.08 µm |
| Contact Gender | Male |
| Mating Post Length | 5.84 mm |
| Contact Shape | Square |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Mating Retention | With |
| Contact Finish Thickness - Mating | 381 nm |
Stock: 40
Distributors
pcbx
pcbxUnit Price$1.89623
Ext.Price$1.89623
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.89623 | $1.89623 |
| 10 | $1.60813 | $16.08130 |
| 25 | $1.52464 | $38.11600 |
| 50 | $1.44549 | $72.27450 |
| 100 | $1.37045 | $137.04500 |
| 300 | $1.20117 | $360.35100 |
| 500 | $1.10684 | $553.42000 |
| 1000 | $1.01993 | $1019.93000 |
